Pilz

328303

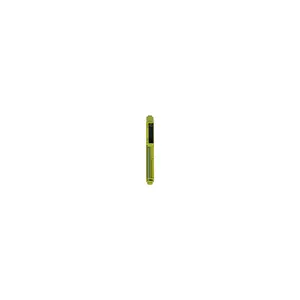

Name: 328303
Brand: Pilz
Availability: PreOrder

Product type: PSS u2 ES 16DI

Datasheet

Description

PSS u2, electronic module, standard, 16 inputs, pulse stretching, 24 V DC with additional voltage distribution module, 1-row, terminal block PSS u2 T 16 required (not supplied with the system).

Controller
I/O systems
PSSuniversal 2 - I/O modules
PSSuniversal 2 - Standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 328303.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.035 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	12.5x110.8x72.5 mm
EAN code
Product group	7088
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	52
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
housing material	PC
number of inputs	16
application range	Standard
ambient temperature	0 60
dc voltage at input	24 V DC
emc to standard ...	EN 61131-2 (Zone B)
etim reference group	EG000024
overvoltage category	II
software filter time	0 ms ... 25.5 ms
overvoltage category 2	III
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
eclass reference feature	27242604
input type to en 61131-2	3
protection type standard	EN 60529
potential isolation input	Yes
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
signal level at input at 0	-3 - +5 VDC
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	Input and module supply
type of potential isolation 1	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
clearance & creepage dist.to 2	EN 60664-1
pollution degree clear.&creep.	2
