Pilz

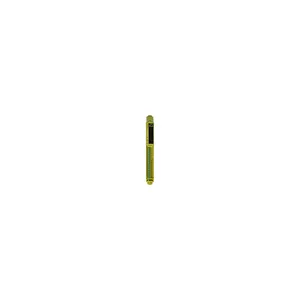

328500

Name: 328500
Brand: Pilz
Availability: PreOrder

Product type: PSS u2 ES 4AI U

Datasheet

Description

PSS u2, electronic module, standard, 4 inputs, voltage, 3 measuring ranges: -12.8 - 12.8 V, -6.4 - 6.4 V, -3.2- 3.2 V, dual-pole, differential input, resolution 16 Bit, currentlimitation per input, potential isolation, 2 data formats, 5 integral evaluation functions per input: Scaling, moving average 0.1 - 20 ms, monitoring to NAMUR NE43, monitoring of 4 areas, monitoring of 8 threshold values, 1-row, terminal blocks PSS u2 T 16 required (not supplied with the system).

Controller
I/O systems
PSSuniversal 2 - I/O modules
PSSuniversal 2 - Standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 328500.
ZWOD Vertriebs und Logistik GmbH carries 4141 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.036 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	12.5x110.8x72.5 mm
EAN code
Product group	7088
approval	CE
etim version	ETIM-7.0
gross weight	52
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
housing material	PC
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61131-2 (Zone B)
etim reference group	EG000024
overvoltage category	II
type of input filter	RC filter 1st order
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
type of analogue inputs	Voltage
eclass reference feature	27242604
protection type standard	EN 60529
number of analogue inputs	4
vibration to standard ...	EN 60068-2-6
analog input signal type 1	Differential input
analog input signal type 2	Differential input
analog input signal type 3	Differential input
perm. operating height asl	2000 m
analog input signal range 1	-12.8 V - +12.8 V
analog input signal range 2	-6.4 V - +6.4 V
analog input signal range 3	-3.2 V - +3.2 V
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
ambient temperature standard	EN 60068-2-14
conversion method analog i/p	Successive approximation
monotony without error codes	yes
storage temperature standard	EN 60068-2-1/-2
value least signif. bit u-me	97.65625 µV (-3.2 V- +3.2 V) 195.3125 µV (-6.4 V- +6.4 V) 390.625 µV (-12.8 V- +12.8 V)
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	Analogue i/p and module supply
potential isolation 2 between	Anal. i/p and periph. supply
potential isolation 3 between	Periphery and module supply
resolution of analogue inputs	16
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
type of potential isolation 3	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max.processing.time analog i/p	tInput filter + 0.1 ms
pollution degree clear.&creep.	2
potential isol. analogue input	Yes
