Pilz

328540

Name: 328540
Brand: Pilz
Availability: PreOrder

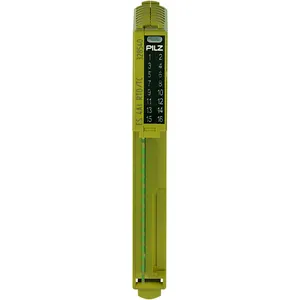

Product type: PSS u2 ES 4AI RTD/TC

Datasheet

Description

PSS u2, electronic module, standard, 4 inputs, resistance thermometer (RTD) Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Pt1000 (α=0.00375), Ni120, thermistors 44004/44033 2.252 kOhm, 44005/44030 3 kOhm, 44007/44034 5 kOhm, 44006/44031 10 kOhm, 44008/44032 30 kOhm, YSI 400 2.252 kOhm, Spectrum 1003k 1kOhm, thermocouples (TC) J, K, E, N, R S, T, B, with open circuit detection and referencetemperature, terminal block PSS u2 T 16 required (not supplied with the unit).

Controller
I/O systems
PSSuniversal 2 - I/O modules
PSSuniversal 2 - Standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 328540.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.04 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	12.5x110.8x72.5 mm
EAN code
Product group	7088
approval	CE
gross weight	56
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
housing material	PC
application range	Standard
ambient temperature	0 60
emc to standard ...	EN 61131-2 (Zone B)
overvoltage category	II
type of input filter	Digital filter
acc. shock to standard1	150 m/s²
condensation permitted?	Not permitted
type of analogue inputs	Thermistor Thermocouple Resistance thermometer
protection type standard	EN 60529
number of analogue inputs	4
platinum sensors standard	DIN EN 60751
signal range analog input	Type N Type R Type S Type T Type E Type J Pt500 Type K Ni120 Pt100 Pt200 Type B Pt1000
vibration to standard ...	EN 60068-2-6
analog input signal type 1	Pt100
analog input signal type 2	Pt200
analog input signal type 3	Pt500
perm. operating height asl	2000 m
potential isolation inputs	yes
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
pot. isolation analog inp./	Yes
ambient temperature standard	EN 60068-2-14
conversion method analog i/p	Delta sigma
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-78
potential isolation 1 between	Analogue i/p and module supply
potential isolation 2 between	Anal. i/p and periph. supply
potential isolation 3 between	Periphery and module supply
resolution of analogue inputs	16
type of potential isolation 1	Functional insulation
type of potential isolation 2	Functional insulation
type of potential isolation 3	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max.processing.time analog i/p	1.5 s
pollution degree clear.&creep.	2
potential isol. analogue input	Yes
