Pilz

380005

Name: 380005
Brand: Pilz
Availability: PreOrder

Product type: SN CAB RJ45s RJ45s, 2m

Datasheet

Description

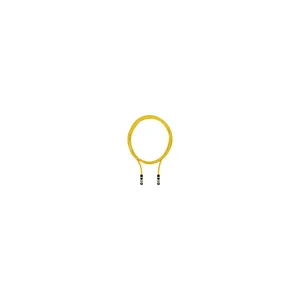

Network cable, SafetyNET p, Cat5e, PUR, yellow RAL1003, shielded, 4- pin, connector straight RJ45 (IP20), on connector straight RJ45 (IP20), cable length: 2m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380005.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.131 KG / psc.
Commodity number	85444210
Country of origin	PL
Dimensions (WxHxD)	14x18.2x50.5 mm
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	137 g
halogen-free	yes
length cable	2 m
shielding k1	yes
stranding k1	Star quad
rated current	0.5 A
eclass version	ECLASS-9.1
housing colour	Signal yellow RAL1003
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	no
connector type 1	4-pin RJ45 male connector
connector type 2	4-pin RJ45 male connector
flame resistance	IEC 60332-1-2 CSA FT-1 UL 1581
housing material	PC
material of pins	CuZn
reach compliance	Contains no SVHC substances
cable material k1	Cu
ambient temperature	-40 - 70 °C
category of cable k1	Cat5e
number of conductors	4
type of shielding k1	Wire mesh
approvals for cable k1	CSA AWM I/II A/B UL AWM-Style 20236
conductor cross section	0.35 mm²
eclass reference feature	27060307
type of rated voltage u1	DC
colour cable insulation 1	Signal yellow RAL1003
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	22
material shield surface k1	Sn
contact surfaces material 1	Au
contact surfaces material 2	Au
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PE
tolerance of cable length k1	+ 0.035m
typ. characteristic imped. k1	100 Ohm
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
max. outside diameter cable k1	6.9 mm
trailing capability of cable 1	no
