Pilz

380210

Name: 380210
Brand: Pilz
Availability: PreOrder

Product type: PSS67 Cable M12sf M12sm, 10m

Datasheet

Description

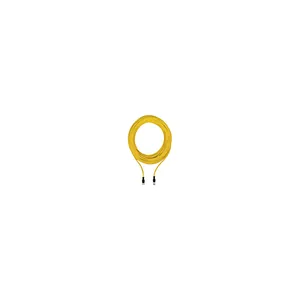

Connection cable, PUR, yellow RAL1003, 5-pin, socket straight, on connector straight M12, A-coded, cable length: 10m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380210.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.348 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA cULus Listed
etim version	ETIM-7.0
gross weight	358 g
halogen-free	yes
length cable	10 m
shielding k1	no
stranding k1	5 cores round filler
cable type k1	LiF9Y11Y
rated current	4 A
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	no
connector type 1	5-pin M12 female connector
connector type 2	5-pin M12 male connector
flame resistance	UL VW1
housing material	PUR
material of pins	CuZn
reach compliance	Contains no SVHC substances
cable material k1	Cu
ambient temperature	-25 - 80 °C
material of sockets	CuSn
etim reference group	EG000026
number of conductors	5
approvals for cable k1	UL AWM-Style 20233 UL/CSA
conductor cross section	0.25 mm²
eclass reference feature	27060311
approvals for connector 1	UL 94 HB
approvals for connector 2	UL 94 HB
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
colour cable insulation 1	Yellow, similar to RAL 1003
matl threaded ring conn 1	CuZn nickel-plated
matl threaded ring conn 2	CuZn nickel-plated
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	24
contact surfaces material 1	Au
contact surfaces material 2	Au
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	79 Ohm/km
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU / TPE-U PUR
max. outside diameter cable k1	5.1 mm
pollution degree clear.&creep.	3
specific conductor capacity k1	64.6pF/m
specific contact resistance k1	>= 7E+15 Ohm*cm
trailing capability of cable 1	yes
