Pilz

380259

Name: 380259
Brand: Pilz
Availability: PreOrder

Product type: PSS67 Supply Cable IN af, B, 3m

Datasheet

Description

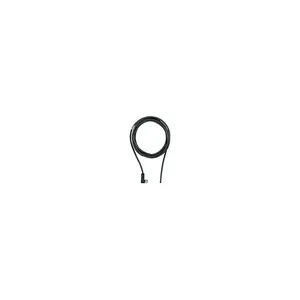

Connection cable, PUR, black RAL9005, suitable for drag chains, 5-pin, socket angled M12, on open line end, B-coded, cable length: 3m

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380259.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.148 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	158 g
length cable	3 m
shielding k1	no
stranding k1	5 cores round PP splice yarn
cable type k1	LiYY11Y
rated current	4 A
eclass version	ECLASS-9.1
housing colour	Black
connector type 1	5-pin M12 female connector
housing material	PUR
cable material k1	Cu
ambient temperature	-5 - 70 °C
material of sockets	CuSn
number of conductors	5
conductor cross section	0.5 mm²
eclass reference feature	27060411
approvals for connector 1	UL94 V-0
colour cable insulation 1	Black, similar to RAL9005
shape of connector type 1	angled
cable cross section awg k1	20
contact surfaces material 1	Au
insulation material cable k1	PVC
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
max. outside diameter cable k1	5.9 mm
pollution degree clear.&creep.	3
specific conductor capacity k1	105pF/m
specific contact resistance k1	>= 1E+14 Ohm*cm
trailing capability of cable 1	no
