Pilz

380301

Name: 380301
Brand: Pilz
Availability: PreOrder

Product type: PSEN cs adapter

Datasheet

Description

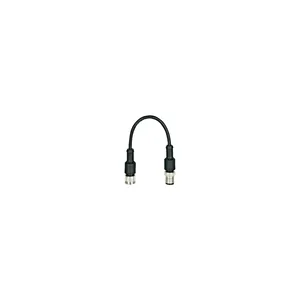

Cable, adapter, IP68, M12 female connector, black, straight, 8-pin, A- coded on M12 male connector, black, angled, 5-pin, A-coded, PUR, 0.1 m, 5× 0.25 mm², black, with shielding (wire mesh), to connect a PSENcode sensor (coded safety switch) to PSS67 and PDP67.

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Adapter

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380301.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.03 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	39 g
halogen-free	yes
length cable	0.1 m
shielding k1	yes
rated current	2 A
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
connector type 1	8-pin M12 female connector
connector type 2	5-pin M12 male connector
flame resistance	UL FT2
housing material	PUR
material of pins	CuZn
cable material k1	Cu
ambient temperature	-25 - 60 °C
material of sockets	CuSn
etim reference group	EG000026
number of conductors	7
type of shielding k1	Wire mesh
conductor cross section	0.25 mm²
eclass reference feature	27272492
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
colour cable insulation 1	Black
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	24
material shield surface k1	Sn
contact surfaces material 1	Au
contact surfaces material 2	Au
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PP (9Y)
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU 11YH1 PUR
max. outside diameter cable k1	5.9 mm
pollution degree clear.&creep.	3
trailing capability of cable 1	yes
