Pilz

380305

Product type: PSEN op 2H Receiver adapter

Description

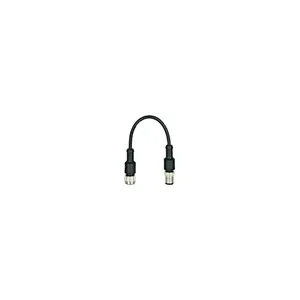

Cable, adapter, IP68, M12 female connector, black, straight, 5-pin, A- coded on M12 male connector, black, angled, 5-pin, A-coded, PUR, 0.1 m, 5× 0.25 mm², black, to connect a PSEN op2H receiver (light curtains) to PSS67 and PDP67.
  • Connection technology
  • Cables and plug-in connectors
  • Cables and plug-in connectors
  • Adapter
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380305.
  • ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.025 KG / psc.
Commodity number85444290
Country of originDE
Dimensions (WxHxD)
EAN code
Product group7169
approvalCE UKCA
etim versionETIM-7.0
gross weight40 g
halogen-freeyes
length cable0.1 m
shielding k1no
stranding k15 cores round filler
cable type k1LiY11Y
rated current4 A
eclass versionECLASS-9.1
housing colourBlack
oil resistanceresistant
connector type 15-pin M12 female connector
connector type 25-pin M12 male connector
housing materialPUR
material of pinsCuZn
cable material k1Cu
ambient temperature-5 - 70 °C
material of socketsCuSn
etim reference groupEG000026
number of conductors5
conductor cross section0.25 mm²
eclass reference feature27060313
coding of m12 connector 1A coded
coding of m12 connector 2A coded
colour cable insulation 1Black
shape of connector type 1straight
shape of connector type 2straight
cable cross section awg k124
contact surfaces material 1Au
contact surfaces material 2Au
insulation material cable k1PVC
weee classifikation (08/2018)5 devices (feed size < 50cm)
material of cable insulation 1PUR
max. outside diameter cable k15.2 mm
pollution degree clear.&creep.3
trailing capability of cable 1no
