380309

Name: 380309
Brand: Pilz
Availability: PreOrder

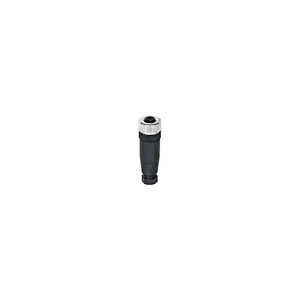

Product type: PSS67 M12 connector straight,female,5pol

Description

Plug-in connector, 5-pin, socket straight M12, A-coded, screwconnection, material threaded ring: CuZn nickel-plated, outer cable diameter: 4-6mm

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380309.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.024 KG / psc.
Commodity number	85369010
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
etim version	ETIM-7.0
gross weight	26 g
rated current	4 A
eclass version	ECLASS-9.1
housing colour	Black
connector type 1	5-pin M12 female connector
ambient temperature	-40 - 85 °C
material of sockets	CuSn
etim reference group	EG000026
overvoltage category	II
eclass reference feature	27060311
approvals for connector 1	UL 94 HB
coding of m12 connector 1	A coded
shape of connector type 1	straight
contact surfaces material 1	CuSnZn
max. cable cross section k1	0.75mm²
max. cable cross sect. awg k1	18
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
