380315

Name: 380315
Brand: Pilz
Availability: PreOrder

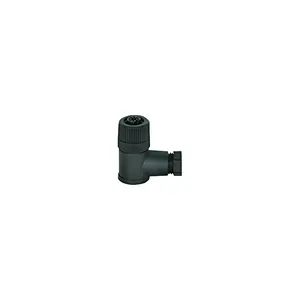

Product type: PSS67 M12 con.,angled,female,5pole,B

Description

Plug-in connector, 5-pin, connector angled M12, B-coded, screw connection, material threaded ring: CuZn nickel-plated, outer cable diameter: 4-6mm

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380315.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.015 KG / psc.
Commodity number	85369010
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
etim version	ETIM-7.0
gross weight	17 g
rated current	4 A
eclass version	ECLASS-9.1
housing colour	Black
connector type 1	5-pin M12 female connector
ambient temperature	-40 - 85 °C
material of sockets	CuSn
etim reference group	EG000026
overvoltage category	II
eclass reference feature	27060311
approvals for connector 1	UL 94 HB
shape of connector type 1	angled
contact surfaces material 1	CuSnZn
max. cable cross section k1	0.75mm²
max. cable cross sect. awg k1	18
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
