Pilz

380318

Name: 380318
Brand: Pilz
Availability: PreOrder

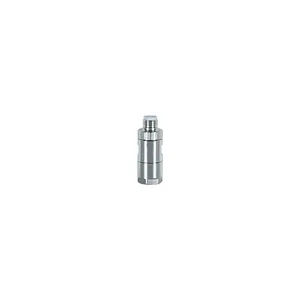

Product type: M12 con., straight, male, 5 pin, L, S

Datasheet

Description

Plug-in connector, 5-pin (4+FE), shielded, socket straight M12, L-coded (power), crimp connector, material threaded ring: Zinc die casting,nickel-plated,, cable screw connection Pg11, outer cable diameter 5-9mm

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Plug-in connectors

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380318.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.05 KG / psc.
Commodity number	85366990
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	-
etim version	ETIM-7.0
gross weight	60 g
rated current	16 A
seal material	FKM
eclass version	ECLASS-9.1
housing colour	Light grey
connector type 1	5-pin M12 male connector
material of pins	CuNi
ambient temperature	-40 - 125 °C
etim reference group	EG000026
cable screw connection	PG 11
eclass reference feature	27060311
type of rated voltage u1	AC/DC
approvals for connector 1	UL94 V-2
conductor connection type	Crimp contact
shape of connector type 1	straight
torque interlocking screw	50 … 60 Ncm, hand-tightened
contact surfaces material 1	Cu/Au
max. cable cross section k1	1.5mm²
clearance & creepage dist. to	EN 60664-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. outside diameter cable k1	5 - 9 mm
pollution degree clear.&creep.	3
