Pilz

380320

Name: 380320
Brand: Pilz
Availability: PreOrder

Product type: PSS67 I/O Cable

Datasheet

Description

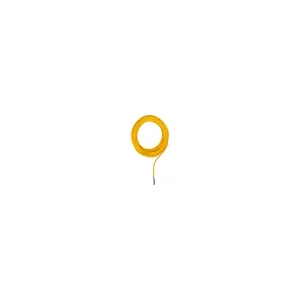

By the metre, PUR, yellow RAL1003, 5x0.25, colour of the single wires:brown, white, blue, black, grey

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380320.
ZWOD Vertriebs und Logistik GmbH carries 4141 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.04 KG / psc.
Commodity number	85444995
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	40 g
halogen-free	yes
shielding k1	no
stranding k1	5 cores round filler
cable type k1	LiF9Y11Y
eclass version	ECLASS-9.1
oil resistance	resistant
flame resistance	UL VW1
cable material k1	Cu
ambient temperature	-25 - 80 °C
etim reference group	EG000026
number of conductors	5
approvals for cable k1	UL AWM-Style 20233 UL/CSA
conductor cross section	0.25 mm²
eclass reference feature	27060311
colour cable insulation 1	Yellow, similar to RAL 1003
cable cross section awg k1	24
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	79 Ohm/km
weee classifikation (08/2018)	0 not relevant
material of cable insulation 1	TPU / TPE-U PUR
max. outside diameter cable k1	5.1 mm
specific conductor capacity k1	64.6pF/m
specific contact resistance k1	>= 7E+15 Ohm*cm
trailing capability of cable 1	yes
