Pilz

380322

Name: 380322
Brand: Pilz
Availability: PreOrder

Product type: PSEN op2/4 M12 Transmitter ad

Datasheet

Description

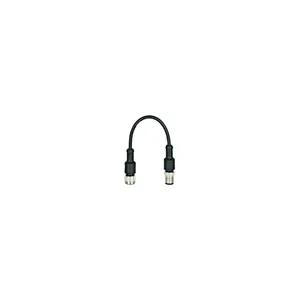

Cable, adapter, IP68, M12 female connector, black, straight, 4-pin, A- coded on M12 male connector, black, angled, 5-pin, A-coded, PUR, 0.1 m, 3× 0.34 mm², black, to connect a transmitter of the sensors PSEN op2S-1-1/PSEN op4S-1-1/PSEN op4S-1-2 (light curtains) to PSS67 and PDP67.

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Plug-in connectors

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380322.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.024 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	39 g
halogen-free	yes
length cable	0.1 m
shielding k1	no
cable type k1	LifY-11Y
rated current	4 A
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
connector type 1	4-pin M12 female connector
connector type 2	5-pin M12 male connector
housing material	PUR
material of pins	CuZn
cable material k1	Cu
ambient temperature	-5 - 70 °C
material of sockets	CuSn
etim reference group	EG000026
number of conductors	3
conductor cross section	0.34 mm²
eclass reference feature	27060313
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
colour cable insulation 1	Black
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	22
contact surfaces material 1	Au
contact surfaces material 2	Au
insulation material cable k1	PVC
typ. conductor resistance k1	55 Ohm/km
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
max. outside diameter cable k1	4.7 mm
pollution degree clear.&creep.	3
specific contact resistance k1	>= 1E+14 Ohm*cm
trailing capability of cable 1	no
