Pilz

380350

Name: 380350
Brand: Pilz
Availability: PreOrder

Product type: PSEN T M12

Datasheet

Description

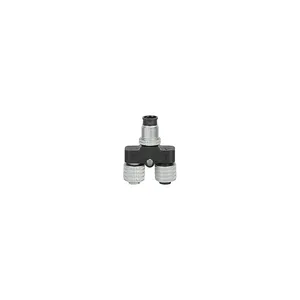

Plug-in connector, T-adapter, IP67, 2x M12 female connector, 5-pin, A- coded on M12 male connector, 5-pin, A-coded, internal wiring 1:1 for all 5 signals, to connect two PSEN to PSS67.

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Plug-in connectors

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 380350.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.023 KG / psc.
Commodity number	85366990
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	-
etim version	ETIM-7.0
gross weight	24 g
rated current	4 A
seal material	FPM
eclass version	ECLASS-9.1
connector type 1	5-pin M12 female connector
connector type 2	5-pin M12 female connector
connector type 3	5-pin M12 male connector
housing material	PBT
material of pins	CuZn
ambient temperature	-25 - 85 °C
material of sockets	CuSn
etim reference group	EG000026
eclass reference feature	27440106
approvals for connector 1	UL 94
approvals for connector 2	UL 94
approvals for connector 3	UL 94
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
coding of m12 connector 3	A coded
contact surfaces material 1	Ni, Au gal.
contact surfaces material 2	Ni, Au gal.
contact surfaces material 3	Ni, Au gal.
housing material connector 3	PBT GF20
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
