400308

Name: 400308
Brand: Pilz
Availability: PreOrder

Product type: PIT esc6c 2n/c 1n/o

Datasheet

Description

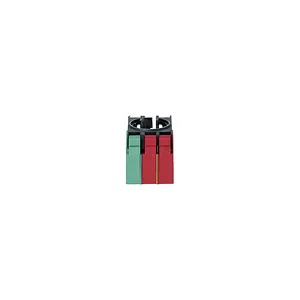

PITestop, contact block, 1 N/C + 1 N/C with monitoring, 1 N/O, with spring-loaded terminals.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 400308.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.033 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	44.5x40x29 mm
EAN code
Product group	7028
approval	CE UKCA
etim version	ETIM-7.0
gross weight	36
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
self-monitored	ja
rohs conformity	yes
rohs exceptions	no
contact material	AgNi
reach compliance	Contains no SVHC substances
mounting position	beliebig
ambient temperature	-25
connection terminal	Federkraftklemme
etim reference group	EG000017
min. contact current	5
eclass reference feature	27371302
voltage ac15 safety cont.	250
voltage dc13 safety cont.	24
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. current ac15 safety cont.	3
pollution degree clear.&creep.	3
utilisation cat. ac15/dc13sta.	EN 60947-5-1
