400324

Name: 400324
Brand: Pilz
Availability: PreOrder

Product type: PIT esc4

Datasheet

Description

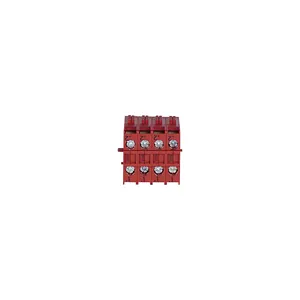

PITestop, contact block, 4 N/C, terminals (screw type).

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 400324.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.048 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	35x44x40 mm
EAN code
Product group	7028
approval	CE UKCA EAC (Eurasian)
etim version	ETIM-7.0
gross weight	51
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
self-monitored	nein
rohs conformity	yes
rohs exceptions	no
contact material	AgNi
reach compliance	Contains no SVHC substances
mounting position	beliebig
ambient temperature	-30
connection terminal	Schraubklemme
etim reference group	EG000017
min. contact current	1
eclass reference feature	27371302
voltage ac15 safety cont.	250
voltage dc13 safety cont.	24
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. current ac15 safety cont.	3
pollution degree clear.&creep.	3
utilisation cat. ac15/dc13sta.	EN 60947-5-1
