Pilz

400455

Name: 400455
Brand: Pilz
Availability: PreOrder

Product type: PIT es Set6u-5nr

Datasheet

Description

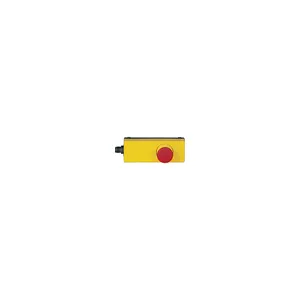

PITestop, E-STOP/contact block incl. slimline surface mount housing,non- modular set for rail mounting consisting of E-STOP pushbutton small and contact block, 2 N/C, with M12 connection 5-pin.

Operating and monitoring
Control and signal devices
PITestop - emergency stop pushbuttons
PITestop - sets

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 400455.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.113 KG / psc.
Commodity number	85371098
Country of origin	DE
Dimensions (WxHxD)	42x53x123 mm
EAN code
Product group	7028
approval	CE UKCA EAC (Eurasian)
etim version	ETIM-7.0
gross weight	126
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
self-monitored	nein
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
mounting position	beliebig
ambient temperature	-25
connection terminal	M12
etim reference group	EG000017
min. contact current	1
contact material e-stop	AgNi, vergoldet
eclass reference feature	27371244
protection type, housing	IP65
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
switch cap. e-stop to standard	EN 60947-5-1
