Pilz

400458

Name: 400458
Brand: Pilz
Availability: PreOrder

Product type: PIT es Set9u-5

Datasheet

Description

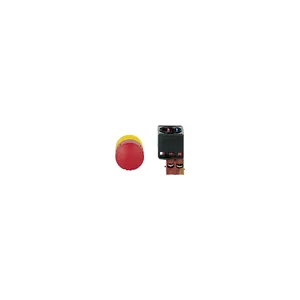

PITestop set consists of E-STOP push button without protective collar preventing jamming, without Pilz label, without emergency stop symbol and contact blocks; complies to EN 60947-5-1 and EN 60947-5-5; 2 n/c with connectivity monitoring, screw terminals.

Operating and monitoring
Control and signal devices
PITestop - emergency stop pushbuttons
PITestop - sets

Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 400458.
ZWOD Vertriebs und Logistik GmbH carries 4141 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.06 KG / psc.
Commodity number	85389099
Country of origin	DE
Dimensions (WxHxD)	52x100x0 mm
EAN code
Product group	7028
approval	CE UKCA EAC (Eurasian)
etim version	ETIM-7.0
gross weight	73
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
self-monitored	ja
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
mounting position	beliebig
ambient temperature	-30
connection terminal	Schraubklemme
etim reference group	EG000017
min. contact current	1
contact material e-stop	AgNi
eclass reference feature	27371244
protection type, housing	IP65
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
switch cap. e-stop to standard	EN 60947-5-1
