Pilz

400463

Name: 400463
Brand: Pilz
Availability: PreOrder

Product type: PIT es Set10u-5ns basic

Datasheet

Description

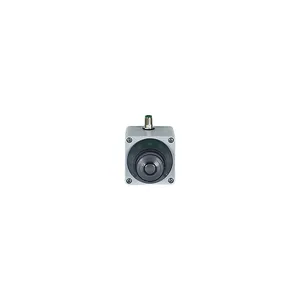

PITestop active, set consisting of E-STOP pushbutton can be activated/deactivated with flashing function, without logo and without E-STOP symbol, with contact block with dropout protection in accordance with EN 60947-5-1 and EN 60947-5-5 and with LED safety module PCB in the surface mount housing with M12/5-pin connection - PDP67 8DI ION PIN assignment, 2 N/C (2 N/C) in quick-connection technology.

Operating and monitoring
Control and signal devices
PITestop - emergency stop pushbuttons
PITestop active - actuators

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 400463.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.207 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	72x103.2x91.8 mm
EAN code
Product group	7028
lamp	LED
cas no.	7439-92-1
lamp colour	yellow red
etim version	ETIM-7.0
gross weight	271
eclass version	ECLASS-9.1
peak amplitude	Max. 0.35 mm
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
mounting position	any
ambient temperature	-25 55
connection terminal	M12
etim reference group	EG000017
overvoltage category	II
%-part of the pollutant	> 0,1
contact material e-stop	AgNi
rated operating voltage	24 V DC
eclass reference feature	27371244
reach included substances	Lead
vibration to standard ...	EN 60947-5-5
release type emergency stop	Turn release
clearance & creepage dist. to	EN 60947-5-1
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
contact fuse protection e-stop	≤ 1 A
pollution degree clear.&creep.	2
switch cap. e-stop to standard	EN 60947-5-1
