Pilz

400465

Name: 400465
Brand: Pilz
Availability: PreOrder

Product type: PIT es Set3s-5ns AIDA

Datasheet

Description

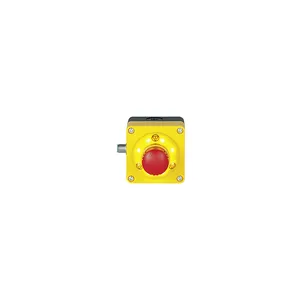

PITestop, E-STOP/contact block incl. surface mount housing, setconsisting of: E-STOP pushbutton illuminated with E-STOP symbol, logo and contact block2 N/C, with M12 connection 5-pin AIDA assignment.

Operating and monitoring
Control and signal devices
PITestop - emergency stop pushbuttons
PITestop - sets

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 400465.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.212 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	72x103x85 mm
EAN code
Product group	7028
lamp	LED
cas no.	7439-92-1
approval	CE
lamp colour	yellow
etim version	ETIM-7.0
gross weight	250
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
self-monitored	yes
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
supply voltage (v)	12 30
ambient temperature	-25 55
connection terminal	M12
etim reference group	EG000017
min. contact current	1
%-part of the pollutant	> 0,1
contact material e-stop	AgNi
eclass reference feature	27371244
reach included substances	Lead
type of supply voltage u1	AC/DC
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
switch cap. e-stop to standard	EN 60947-5-1
