Pilz

401100

Name: 401100
Brand: Pilz
Availability: PreOrder

Product type: PIT js2

Datasheet

Description

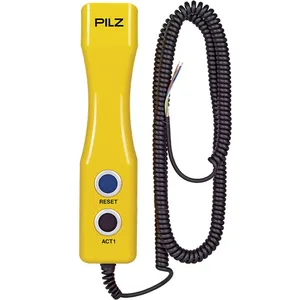

PITjog manually operated control device 3 built-in pushbuttons, connection via 10-pin coiled cable with open end.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 401100.
ZWOD Vertriebs und Logistik GmbH carries 4141 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.837 KG / psc.
Commodity number	85365011
Country of origin	DE
Dimensions (WxHxD)	75x341x60 mm
EAN code
Product group	7029
cas no.	7439-92-1
approval	CE
etim version	ETIM-7.0
gross weight	951
length cable	5
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
self-monitored	no
rohs conformity	yes
rohs exceptions	yes
housing material	PC-ABS-Blend UL 94V0
reach compliance	contains min. 1 SVHC-substance
number, pushbutton	3
supply voltage (v)	24 24
ambient temperature	-10 55
etim reference group	EG000017
%-part of the pollutant	> 0,1
conductor cross section	0.14 0.14
eclass reference feature	27371244
voltage dc1 safety cont.	24
reach included substances	Lead
type of supply voltage u1	AC/DC
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
