401110

Name: 401110
Brand: Pilz
Availability: PreOrder

Product type: PIT en1.0p-5m-s

Datasheet

Description

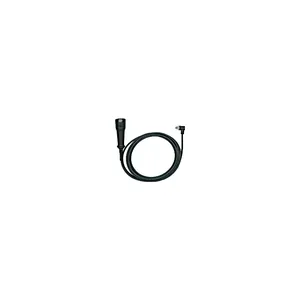

PITenable 3-step enable switch, 5 m connection cable and M12 angled connector.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 401110.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.383 KG / psc.
Commodity number	85371098
Country of origin	DE
Dimensions (WxHxD)	45x125x45 mm
EAN code
Product group	7083
approval	CE
diameter	45
etim version	ETIM-7.0
gross weight	409
length cable	5
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
self-monitored	no
connection type	M12, 5-pin male, angled
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
mounting position	any
ambient temperature	0 50
etim reference group	EG000026
eclass reference feature	27371238
voltage ac15 safety cont.	125
voltage dc13 safety cont.	30
max.current dc12 safety cont.	1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PP
material of cable insulation 1	PUR
max. current ac15 safety cont.	0.3
utilisation cat. ac15/dc13sta.	EN 60947-5-1
