Pilz

402230

Name: 402230
Brand: Pilz
Availability: PreOrder

Product type: PIT m3.2p

Datasheet

Description

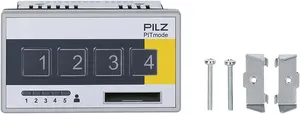

PITmode electronic selector switch for installing the control station and to safe installing of 5 operating modes via a non-contact key and key selection. 4 operating modes OM1 to OM4 and a special mode OM5. Authorisation display via LEDs, Key ID interface for transferring the Key ID number of the transponder key.

Operating and monitoring
Control and signal devices
PITmode - operating mode & access
PITmode

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 402230.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.14 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	98x55x43 mm
EAN code
Product group	7075
cas no.	7439-92-1 1317-36-8
approval	CE UKCA cULus Listed FCC IC TÜV
etim version	ETIM-7.0
gross weight	260
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	95 % r. F. at 40 °C
rohs conformity	yes
rohs exceptions	yes
number of inputs	3
reach compliance	contains min. 1 SVHC-substance
sensor principle	Transponder
max. cable length	1000
mounting position	beliebig
supply voltage (v)	24
transponder coding	0x1111 (PILZ)
ambient temperature	-20
connection terminal	Schraubklemme steckbar Federkraftklemme steckbar
dc voltage at input	24 V DC
emc to standard ...	EN 60947-5-1
operating frequency	125 kHz
etim reference group	EG000017
overvoltage category	II
galv. isolation input	nein
%-part of the pollutant	> 0,1%
time button om1 service	5 s ... 10 s
time buttons om1 .. om4	50 ms ... 5 s
eclass reference feature	27371243
flex. cond. c/s awg info	28 - 16 AWG
protection type, housing	IP20
terminal protection type	IP20
protection type, mounting	IP65
reach included substances	Lead Lead oxide
transponder energy supply	passiv (batterielos)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
signal level at input at 0	-3 - +5 V DC
climatic suitability to ...	DIN IEC 60068-2-3
housing material front plate	ABS
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
rohs except.s acc. to direct.	7a 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
galv. isolation of s/c outputs	nein
housing material lower section	ST + 10µ Zn
pollution degree clear.&creep.	2
s/c output short circuit proof	ja
