Pilz

402250

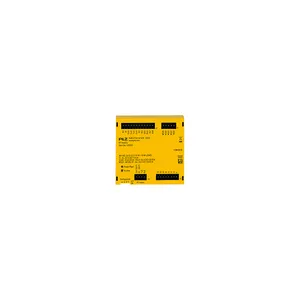

Name: 402250
Brand: Pilz
Availability: PreOrder

Product type: PIT m4SEU

Datasheet

Description

PITmode safe evaluation unit. Safe evaluation unit for operating mode selection. 4 operating modes OM1 to OM4 and a special mode OM5. Key ID interface for transferring the Key ID number of the transponder key. Required accessories: PITreader base unit [402255], PITreader key adapter. Optional accessories: Connectorset [402306], PIT oe 4S [402311].

Operating and monitoring
Control and signal devices
PITmode - operating mode & access
PITmode

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 402250.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.083 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	90x90.5x25 mm
EAN code
Product group	7075
cas no.	7439-92-1 1317-36-8
approval	CE UKCA cULus Listed TÜV
etim version	ETIM-7.0
gross weight	92
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
max. cable length	1000
mounting position	any
supply voltage (v)	24 24
ambient temperature	-20 60
connection terminal	Spring-loaded terminal, plugin
dc voltage at input	24 V DC
din-rail dimensions	35 x 15 EN 50022 35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000017
overvoltage category	II
galv. isolation input	No
%-part of the pollutant	> 0,1%
acc. shock to standard1	15g
condensation permitted?	Not permitted
no. s/c inputs failsafe	4
no. s/c inputs standard	3
time button om1 service	5 s ... 10 s
time buttons om1 .. om4	50 ms ... 5 s
eclass reference feature	27371243
protection type standard	EN 60529
device circuit breaker u1	4 A, Autom 24 VDC, Char.B/C
reach included substances	Lead Lead oxide
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
signal level at input at 0	-3 - +5 VDC
type of power supply for u1	SELV/PELV
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-78
rohs except.s acc. to direct.	7a 7c I
weee classifikation (08/2018)	0 not relevant
galv. isolation of s/c outputs	No
housing material lower section	PC
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
