Pilz

407710

Name: 407710
Brand: Pilz
Availability: PreOrder

Product type: S1SW P 24-240VACDC UM 0-690VAC/DC

Datasheet

Description

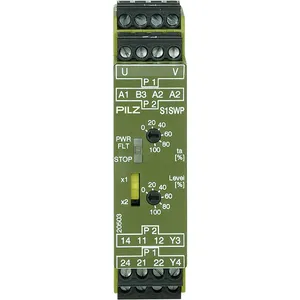

Standstill monitoring relay for monitoring DC and three-phase motors, 2 C/O contacts, plug-in terminals of screw type, width 22.5 mm, UB = 24 - 240 V AC/DC.

Relay modules
Monitoring relays / monitoring devices
PMDsrange - monitoring relays
PMDsrange

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 407710.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.145 KG / psc.
Commodity number	85364190
Country of origin	FR
Dimensions (WxHxD)	22.5x94x121 mm
EAN code
Product group	7007
approval	CE CCC UKCA cULus Listed
etim version	ETIM-7.0
gross weight	155 g
eclass version	ECLASS-9.1
reach compliance	contains min. 1 SVHC-substance
mounting position	any
supply voltage (v)	24 - 240 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
etim reference group	EG000019
power consumption ac	5 VA
power consumption dc	2.5 W
relay contact material	AgCdO
condensation permitted?	Not permitted
eclass reference feature	27371811
flex. cond. c/s awg info	24 - 10 AWG
safety contacts: ac at ul	240 VAC Res. NO Side Only
type of supply voltage u1	AC/DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
max. device circuit breaker	Max. conductor cross section
safety contacts: pilot duty	B300, R300
addit. contact details relay	+ 3.0 µm Au
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
