Pilz

504228

Name: 504228
Brand: Pilz
Availability: PreOrder

Product type: PSEN 1.1a-22/PSEN 1.1-20 /8mm/5m/ix1/1un

Datasheet

Description

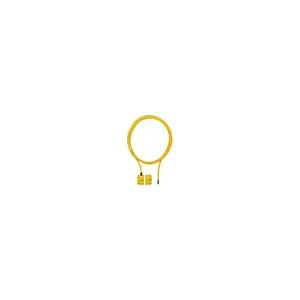

Magnetic safety switch 2 n/o, square design, height design 13 mm, IP6K9K, operating distance 8 mm, for applications withPSEN ix1, PU = 1 piece with actuator, with 5 m cable (PUR).

Sensor technology
Safety switches
PSENmag - non-contact, magnetic safety switches
PSENmag for electronic/electromechanic relays

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 504228.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.192 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	26x36x13 mm
EAN code
Product group	7045
approval	CE cULus Listed EAC (Eurasian) ECOLAB TÜV
unit type	Unit
cable lines	LiY11Y 4 x 0.25 mm2
etim version	ETIM-7.0
gross weight	210 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	5 m cable
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	no
type 1 actuator	PSEN 1.1-20
reach compliance	Contains no SVHC substances
sensor principle	magnetic
switching voltage	24 V
supply voltage (v)	24 V
ambient temperature	-10 - 70 °C
emc to standard ...	EN 60947-5-3
etim reference group	EG000026
acc. shock to standard1	30g
eclass reference feature	27272402
coding level to iso 14119	Low
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
perm. operating height asl	2000 m
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
climatic suitability standard	IEC 60068-2-30
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
suitable for series connection	yes
