Pilz

506233

Name: 506233
Brand: Pilz
Availability: PreOrder

Product type: PSEN ma1.3b-22/PSEN ma1.3-12/12mm/ix1/1u

Datasheet

Description

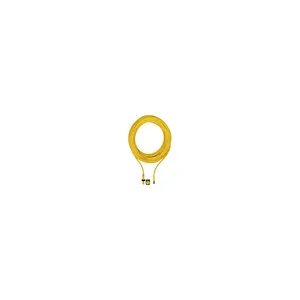

Magnetic safety switch 3 n/o, round M12 design, IP67, operating distance 12 mm, for applications with PSEN ix1, PU = 1 piecewith cuboid actuator coded, with 10 m cable (PUR).

Sensor technology
Safety switches
PSENmag - non-contact, magnetic safety switches
PSENmag for electronic/electromechanic relays

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 506233.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.386 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	12x11x59.1 mm
EAN code
Product group	7045
approval	CE UL/cUL cULus Listed ECOLAB EAC (Eurasian) TÜV
unit type	Unit
cable lines	LiY11Y 6 x 0.25 mm2
etim version	ETIM-7.0
gross weight	395 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	10 m cable
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	no
type 1 actuator	PSEN ma1.3-12
reach compliance	Contains no SVHC substances
sensor principle	magnetic
switching voltage	24 V
supply voltage (v)	24 V
ambient temperature	-25 - 70 °C
emc to standard ...	EN 60947-5-3
etim reference group	EG000026
acc. shock to standard1	30g
eclass reference feature	27272402
coding level to iso 14119	Low
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
perm. operating height asl	2000 m
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
climatic suitability standard	IEC 60068-2-30
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
suitable for series connection	yes
