514120

Name: 514120
Brand: Pilz
Availability: PreOrder

Product type: PSEN 1.1-20 / 1 actuator

Datasheet

Description

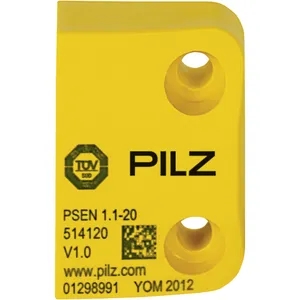

Actuator for magnetic safety switch, square design, IP67, operating distance depending on the actuator 8/12 mm, heightdesign 13 mm, PU = 1 actuator.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 514120.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.012 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	26x36x13 mm
EAN code
Product group	7045
approval	CE cULus Listed EAC (Eurasian) TÜV
unit type	Actuator
etim version	ETIM-7.0
gross weight	18 g
atex category	II 3GD EEx nC IIC T6
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
ambient temperature	-25 - 70 °C
etim reference group	EG000026
acc. shock to standard1	30g
eclass reference feature	27272404
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
