Pilz

533159

Name: 533159
Brand: Pilz
Availability: PreOrder

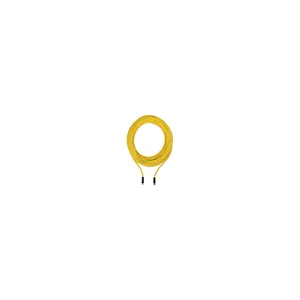

Product type: PSEN cable M8-8sf M8-8sm, 10m

Datasheet

Description

Connection cable, PUR, yellow RAL1003, suitable for drag chains, 8-pin,socket straight M8, on connector straight M8, A-coded, cable length: 10m

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 533159.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.351 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA cULus Listed
etim version	ETIM-7.0
gross weight	356 g
halogen-free	yes
length cable	10 m
shielding k1	no
stranding k1	8 cores round cotton filler
cable type k1	LiF9Y11Y
rated current	1.5 A
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
connector type 1	8 pin M8 male connector
connector type 2	8-pin M8 female connector
flame resistance	CSA FT-2 UL 1581, Cable Flame
housing material	PUR
material of pins	CuZn
cable material k1	Cu
ambient temperature	-40 - 80 °C
material of sockets	CuSn
etim reference group	EG000026
number of conductors	8
approvals for cable k1	UL AWM-Style 20233 UL/CSA
conductor cross section	0.14 mm²
eclass reference feature	27060311
colour cable insulation 1	Yellow, similar to RAL 1003
shape of connector type 1	straight
shape of connector type 2	straight
torque interlocking screw	0.4 Nm
cable cross section awg k1	26
contact surfaces material 1	Au
contact surfaces material 2	Au
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PP cold resistance
typ. conductor resistance k1	140 Ohm/km
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU / TPE-U PUR
max. outside diameter cable k1	5.7 mm
pollution degree clear.&creep.	3
specific conductor capacity k1	57.5pF/m
specific contact resistance k1	>= 7E+15 Ohm*cm
trailing capability of cable 1	yes
