Pilz

533191

Name: 533191
Brand: Pilz
Availability: PreOrder

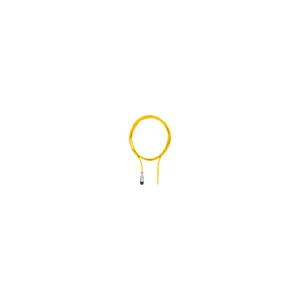

Product type: PSEN cable M12-8sf VA 10m

Datasheet

Description

Connection cable, PVC (UL105°C), yellow RAL1003, ECOLAB, suitable fordrag chains, 8-pin, socket straight M12, on open line end, A-coded, threaded ring: Stainless steel 1.4404, cable length: 10m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 533191.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.188 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA cULus Listed ECOLAB
etim version	ETIM-7.0
gross weight	1198 g
halogen-free	no
length cable	10 m
shielding k1	no
stranding k1	Cores in concentric layers
rated current	2 A
seal material	EPDM
eclass version	ECLASS-9.1
housing colour	Light grey
oil resistance	resistant
connector type 1	8-pin M12 female connector
flame resistance	VDE 0482-265-2-2 IEC 60332-2 EN 50265-2-2 UL VW1
cable material k1	Cu
ambient temperature	-40 - 105 °C
material of sockets	CuSn
etim reference group	EG000026
number of conductors	8
overvoltage category	II
approvals for cable k1	UL AWM-Style 2517 VW1
conductor cross section	0.25 mm²
eclass reference feature	27060311
coding of m12 connector 1	A coded
colour cable insulation 1	Signal yellow RAL1003
matl threaded ring conn 1	1.4404 stainless steel
shape of connector type 1	straight
torque interlocking screw	Approx. 50 cNM
cable cross section awg k1	24
contact surfaces material 1	Au
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PVC Y17(105°)
typ. conductor resistance k1	79 Ohm/km
weee classifikation (08/2018)	5 devices (feed size < 50cm)
insulation resistance cable k1	200 MOhm x km
material of cable insulation 1	PVC YM3(105°)
max. outside diameter cable k1	6.2 mm
pollution degree clear.&creep.	3
trailing capability of cable 1	yes
