Pilz

540080

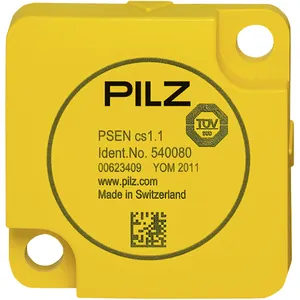

Product type: PSEN cs1.1 1 actuator

Description

Actuator for coded safety switch PSENcode 1.x/2.x, PU = 1 piece actuator.
  • Sensor technology
  • Safety switches
  • PSENcode - non-contact, coded safety switches
  • PSENcode - large design
  • PSEN cs1.1 1 actuator
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 540080.
  • ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.02 KG / psc.
Commodity number85365019
Country of originCH
Dimensions (WxHxD)40x11x40 mm
EAN code
Product group7046
approvalCE cULus Listed EAC (Eurasian) TÜV
unit typeActuator
etim versionETIM-7.0
gross weight21
eclass versionECLASS-9.1
rohs directive2011/65/EU 2015/863/EU
humidity rating93 % r. h. at 40 °C
rohs conformityyes
rohs exceptionsno
reach complianceContains no SVHC substances
sensor principleTransponder
transponder codingcoded
ambient temperature-25 70
emc to standard ...EN 60947-5-3
operating frequency122 kHz - 128 kHz
etim reference groupEG000026
acc. shock to standard130g
eclass reference feature27272404
coding level to iso 14119Low
vibration to standard ...EN 60947-5-2
housing material upper partPBT
ambient temperature standardEN 60068-2-14
storage temperature standardEN 60068-2-1/-2
climatic suitability standardEN 60068-2-78
weee classifikation (08/2018)5 devices (feed size < 50cm)
