Pilz

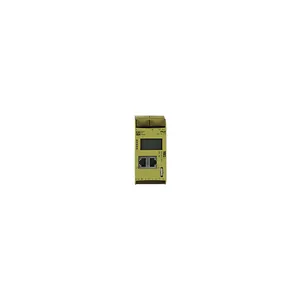

540130

Product type: SDD ES ETH

Description

SDD (Safety Device Diagnostics), fieldbus module, standard, Modbus/TCP,2 RJ45 ports, 6 digital inputs/outputs, plug-in connection terminals (not supplied with the unit).
  • Networks
  • Device Diagnostics System
  • Safety Device Diagnostics
  • Fieldbus modules
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 540130.
  • ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.16 KG / psc.
Commodity number85176200
Country of originDE
Dimensions (WxHxD)45x115x95 mm
EAN code
Product group7129
cas no.7439-92-1
approvalCE cULus Listed
etim versionETIM-7.0
gross weight175 g
purpose of u1Module supply
eclass versionECLASS-9.1
rohs directive2011/65/EU 2015/863/EU
humidity rating90 % r. h. at 55 °C
rohs conformityyes
rohs exceptionsyes
reach compliancecontains min. 1 SVHC-substance
modbus connectionRJ45
mounting positionany
fieldbus interfaceModbus/TCP
modbus device typeServer
supply voltage (v)24 V
ambient temperature0 - 55 °C
connection fieldbusRJ45
connection terminalScrew terminal plug-in Spring-loaded terminal, plugin
din-rail dimensions35 x 7.5 EN 50022
emc to standard ...EN 61000-4-5 EN 61000-6-4 EN 61000-4-6 EN 61000-4-3
etim reference groupEG000024
power consumption dc2 W
modbus operating modesAuto-MDIX Autonegotiation
%-part of the pollutant> 0,1
acc. shock to standard115g
condensation permitted?Not permitted
eclass reference feature27242608
flex. cond. c/s awg info24 - 12 AWG
galv. isolation fieldbusYes
number of digital inputs6
protection type standardEN 60529
name of fieldbus protocolModbus TCP (Slave)
reach included substancesLead
type of supply voltage u1DC
vibration to standard ...EN 60068-2-6
perm. operating height asl2000 m
type of galvanic isolationFunctional insulation
galv. isolation from modbusYes
housing material upper partPC
number of modbus interfaces8
number of semicond. outputs6
ambient temperature standardEN 60068-2-14
housing material front platePC
storage temperature standardEN 60068-2-1/-2
climatic suitability standardEN 60068-2-30 EN 60068-2-78
modbus selectable trans. rate10 MBit/s 100 MBit/s
potential isolation 1 betweenModbus and system voltage
rohs except.s acc. to direct.7a 7c I
selectable transmission rates10 MBit/s 100 MBit/s
type of potential isolation 1Functional insulation
weee classifikation (08/2018)5 devices (feed size < 50cm)
housing material lower sectionPC
perm. fieldbus station address0 - 255d
s/c output short circuit proofYes
