Pilz

540137

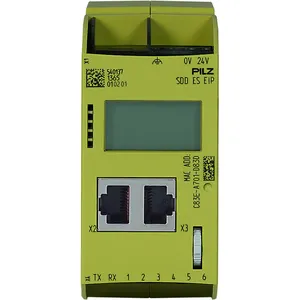

Name: 540137
Brand: Pilz
Availability: PreOrder

Product type: SDD ES EIP

Datasheet

Description

SDD (Safety Device Diagnostics), fieldbus module, standard, EtherNet/IP,2 RJ45 ports, 6 digital inputs/outputs, plug-in connection terminals (not supplied with the unit).

Networks
Device Diagnostics System
Safety Device Diagnostics
Fieldbus modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 540137.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.16 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	45x115x95 mm
EAN code
Product group	7129
approval	CE cULus Listed
gross weight	175 g
purpose of u1	Module supply
humidity rating	90 % r. h. at 55 °C
mounting position	any
fieldbus interface	EtherNet/IP (TM)
supply voltage (v)	24 V
ambient temperature	0 - 55 °C
connection fieldbus	RJ45
connection terminal	Screw terminal plug-in Spring-loaded terminal, plugin
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-3
power consumption dc	2 W
acc. shock to standard1	15g
condensation permitted?	Not permitted
flex. cond. c/s awg info	24 - 12 AWG
galv. isolation fieldbus	Yes
number of digital inputs	6
protection type standard	EN 60529
name of fieldbus protocol	EtherNet/IP (TM) (adapter)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
housing material upper part	PC
number of semicond. outputs	6
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
potential isolation 1 between	Ethernet and system voltage
selectable transmission rates	10 MBit/s 100 MBit/s
type of potential isolation 1	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
s/c output short circuit proof	Yes
