Pilz

540150

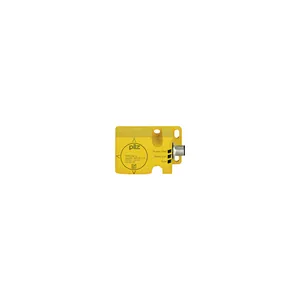

Name: 540150
Brand: Pilz
Availability: PreOrder

Product type: PSEN cs2.1p 1 switch

Datasheet

Description

RFiD safety switch, 2 safe SC outputs, 8-pin M12 male connector, 4 actuation directions, IP67, typ. operating distance 21 mm, Sao = 15 mm,Sar = 40 mm, PU = 1 piece fully coded switch, max. 8 teach-in processes.

Sensor technology
Safety switches
PSENcode - non-contact, coded safety switches
PSENcode - large design
PSEN cs2.1p 1 switch

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 540150.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.13 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	40x75x40 mm
EAN code
Product group	7046
cas no.	7439-92-1 1317-36-8
approval	CE cULus Listed EAC (Eurasian) TÜV
unit type	Sensor
etim version	ETIM-7.0
gross weight	161
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	M12, 8-pin male
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
type 1 actuator	PSEN cs2.1
number of inputs	2
reach compliance	contains min. 1 SVHC-substance
sensor principle	Transponder
supply voltage (v)	24 24
transponder coding	fully coded
ambient temperature	-25 70
dc voltage at input	24 V DC
emc to standard ...	EN 60947-5-3
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
overvoltage category	III
power consumption dc	2
number of ossd outputs	2
number of sig. outputs	1
%-part of the pollutant	> 0,1%
acc. shock to standard1	30g
eclass reference feature	27272403
coding level to iso 14119	High
potential isolation s/c o	No
reach included substances	Lead Lead oxide
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
ambient temperature standard	EN 60068-2-14
change op. dist. temp.change	+-0.01mm/°C
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
rohs except.s acc. to direct.	7a 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
s/c output short circuit proof	Yes
suitable for series connection	yes
utilisation cat. to en 60947-1	DC-12
