Pilz

540318

Name: 540318
Brand: Pilz
Availability: PreOrder

Product type: PSEN Y junction M8 cable channel

Datasheet

Description

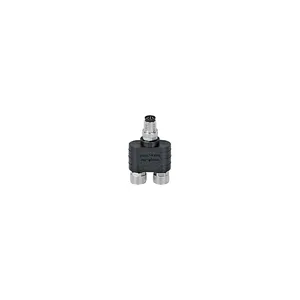

Plug-in connector, Y-adapter, IP67, M8 male connector (X1, evaluationdevice), 8-pin, A-coded on M8 female connector (X2, sensor), 8-pin, A-coded and M8 female connector (X3, sensor)/next plug-in connector), 8-pin, A- coded, incorrect insertion of the connections electrically excluded byinternal wiring, to connect PSENcode, to connect PSENslock on the cable outlet in the cable duct.

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Adapter

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 540318.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.013 KG / psc.
Commodity number	85444290
Country of origin	CN
Dimensions (WxHxD)
EAN code
Product group	7169
approval	-
etim version	ETIM-7.0
gross weight	14 g
rated current	1 A
seal material	FPM
eclass version	ECLASS-9.1
housing colour	Black
connector type 1	8 pin M8 male connector
connector type 2	8-pin M8 female connector
connector type 3	8-pin M8 female connector
housing material	TPU
material of pins	CuZn, gold-plated
ambient temperature	-20 - 80 °C
material of sockets	CuZn, gold-plated
etim reference group	EG000026
eclass reference feature	27272492
matl threaded ring conn 1	Zn, nickel-plated
matl threaded ring conn 2	Zn, nickel-plated
contact surfaces material 1	Au
contact surfaces material 2	Au
contact surfaces material 3	Au
housing material connector 3	TPU
material threaded ring conn 3	Zn, nickel-plated
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
