Pilz

540344

Name: 540344
Brand: Pilz
Availability: PreOrder

Product type: PSEN cable M12-8sf M12-8sm, 30m

Datasheet

Description

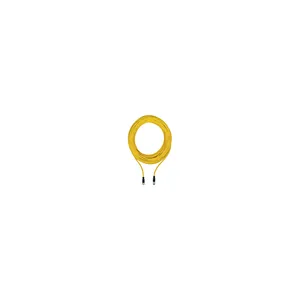

Connection cable, PUR, yellow RAL1003, suitable for drag chains, 8-pin,socket straight M12, on connector straight M12, A-coded, cable length: 30m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 540344.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.448 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
cas no.	7439-92-1
approval	CE UKCA cULus Listed
etim version	ETIM-7.0
gross weight	1469 g
halogen-free	yes
length cable	30 m
shielding k1	no
stranding k1	8 cores round filler
cable type k1	Li9Y11Y
rated current	2 A
seal material	FPM
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
connector type 1	8-pin M12 female connector
connector type 2	8-pin M12 male connector
flame resistance	cULus 20549
housing material	TPU, UL94
material of pins	CuZn
reach compliance	contains min. 1 SVHC-substance
cable material k1	Cu
ambient temperature	-25 - 80 °C
material of sockets	CuZn
etim reference group	EG000026
number of conductors	8
approvals for cable k1	UL AWM-Style 20549
%-part of the pollutant	> 0,1
conductor cross section	0.25 mm²
eclass reference feature	27060311
approvals for connector 1	UL 94
approvals for connector 2	UL 94
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
colour cable insulation 1	Signal yellow RAL1003
matl threaded ring conn 1	CuZn nickel-plated
matl threaded ring conn 2	CuZn nickel-plated
reach included substances	Lead
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	24
contact surfaces material 1	Ni, Au gal.
contact surfaces material 2	Ni, Au gal.
bend radius (when laying) k1	6 x Ø
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	78 Ohm/km
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU / TPE-U
max. outside diameter cable k1	6.2 mm
pollution degree clear.&creep.	3
specific conductor capacity k1	60pF/m
specific contact resistance k1	>= 1E+16 Ohm*cm
trailing capability of cable 1	yes
