Pilz

540382

Name: 540382
Brand: Pilz
Availability: PreOrder

Product type: PSEN cs1.19-OSSD1 1actuator

Datasheet

Description

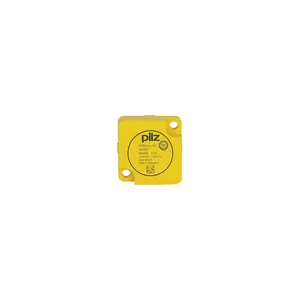

RFiD actuator for safety switch PSEN cs1.19, IP67, PU = 1 piece, OSSD1.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 540382.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.02 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	40x11x40 mm
EAN code
Product group	7046
approval	CE cULus Listed TÜV EAC (Eurasian)
unit type	Actuator
etim version	ETIM-7.0
gross weight	25
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
sensor principle	Transponder
transponder coding	coded
ambient temperature	-25 55
emc to standard ...	EN 60947-5-3
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
overvoltage category	III
acc. shock to standard1	30g
eclass reference feature	27272404
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
