Pilz

541180

Name: 541180
Brand: Pilz
Availability: PreOrder

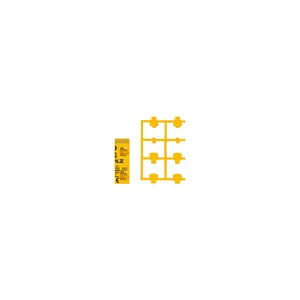

Product type: PSEN cs4.1 1 actuator

Datasheet

Description

RFiD actuator for safety switch PSEN cs4.x, IP67, PU = 1 piece.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 541180.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.011 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	18x37x18 mm
EAN code
Product group	7046
approval	CE UKCA cULus Listed TÜV EAC (Eurasian)
unit type	Betätiger
etim version	ETIM-7.0
gross weight	15
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	93 % r. F. bei 40 °C
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
sensor principle	Transponder
transponder coding	vollcodiert
ambient temperature	-25
emc to standard ...	EN 60947-5-3
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
acc. shock to standard1	30g
eclass reference feature	27272404
protection type, housing	IP6K9K
coding level to iso 14119	hoch
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
