541186

Name: 541186
Brand: Pilz
Availability: PreOrder

Product type: PSEN cs4.1 Key bl

Datasheet

Description

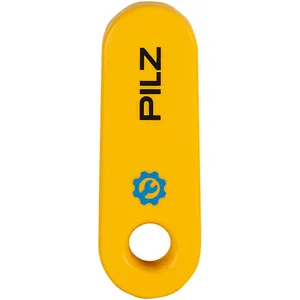

Transponder key for PSEN cs4.1p, blue marking, material: plastic, accessories: key adapter (532113)

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 541186.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.005 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	42x15.1x8 mm
EAN code
Product group	7046
approval	CE UKCA cULus Listed FCC IC EAC (Eurasian) TÜV
unit type	Actuator
gross weight	6
humidity rating	93 % r. h. at 40 °C
sensor principle	Transponder
transponder coding	fully coded
ambient temperature	-10 55
emc to standard ...	EN 60947-5-3
operating frequency	122 kHz - 128 kHz
acc. shock to standard1	30g
coding level to iso 14119	High
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
