Pilz

541380

Name: 541380
Brand: Pilz
Availability: PreOrder

Product type: PSEN cs3.19-OSSD1&2 1actuator

Datasheet

Description

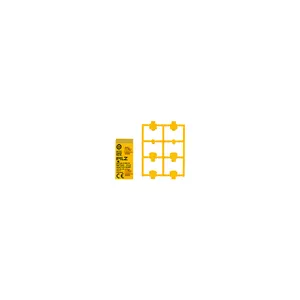

RFiD actuator for safety switch PSEN cs3.19, IP67, PU = 1 piece, OSSD 1&2.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 541380.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.015 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	18x37x18 mm
EAN code
Product group	7046
approval	CE UKCA cULus Listed EAC (Eurasian) TÜV
unit type	Betätiger
etim version	ETIM-7.0
gross weight	35
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	93 % r. F. bei 40 °C
rohs conformity	yes
rohs exceptions	no
product material	PBT
reach compliance	Contains no SVHC substances
sensor principle	Transponder
transponder coding	codiert
ambient temperature	-25
emc to standard ...	EN 60947-5-3
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
acc. shock to standard1	30g
eclass reference feature	27272404
protection type, housing	IP6K9K
coding level to iso 14119	gering
vibration to standard ...	EN 60947-5-2
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
