Pilz

542050

Name: 542050
Brand: Pilz
Availability: PreOrder

Product type: PSEN cs5.1p 1switch

Datasheet

Description

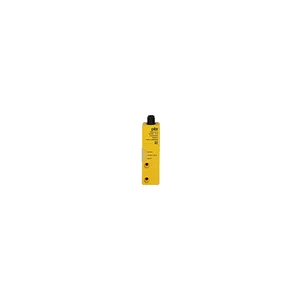

RFiD safety switch, 2 safe SC outputs, 8-pin M8 male connector, IP67, 4 actuation directions, typ. operating distance (square) 11 mm,Sao = 8 mm, Sar = 20 mm, PU = 1 piece coded switch.

Sensor technology
Safety switches
PSENcode - non-contact, coded safety switches
PSENcode - slim design

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 542050.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.048 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	97.6x26.4x13 mm
EAN code
Product group	7046
cas no.	1317-36-8
approval	CE cULus Listed FCC IC TÜV ECOLAB EAC (Eurasian)
unit type	Sensor
etim version	ETIM-7.0
gross weight	58
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	M8, 8-pin male
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
number of inputs	2
product material	PBT PA+GF Polycarbonate
reach compliance	contains min. 1 SVHC-substance
sensor principle	Transponder
supply voltage (v)	24 24
transponder coding	coded
ambient temperature	-25 70
dc voltage at input	24 V DC
emc to standard ...	EN 60947-5-3
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
overvoltage category	III
power consumption dc	1
number of ossd outputs	2
number of sig. outputs	1
%-part of the pollutant	> 0,1%
acc. shock to standard1	30g
eclass reference feature	27272403
coding level to iso 14119	Low
potential isolation s/c o	No
reach included substances	Lead oxide
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
max. ambient temp. at hmax	+60 °C
perm. operating height asl	4000 m
sensor can be flush-mounted	Yes, follow installation guide
ambient temperature standard	EN 60068-2-14
max. ambient temp. at 2000 m	+70 °C
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-30
rohs except.s acc. to direct.	7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
change op. distance temp.act.1	+-0.02mm/°C
change op. distance temp.act.2	+-0.02mm/°C
change op. distance temp.act.3	+-0.02mm/°C
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
s/c output short circuit proof	Yes
suitable for series connection	yes
utilisation cat. to en 60947-1	DC-12
