Pilz

542083

Name: 542083
Brand: Pilz
Availability: PreOrder

Product type: PSEN cs5.1 M12 1actuator

Datasheet

Description

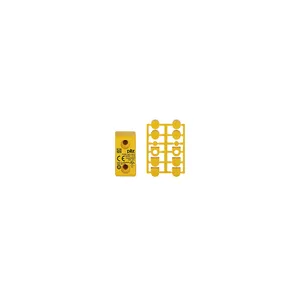

RFiD actuator for safety switch PSEN cs5.1 M12, IP67, for switch with M12 connection, PU = 1 piece.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 542083.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.015 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	37x18x19 mm
EAN code
Product group	7046
approval	CE cULus Listed TÜV ECOLAB EAC (Eurasian)
unit type	Actuator
etim version	ETIM-7.0
gross weight	20
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
sensor principle	Transponder
transponder coding	coded
ambient temperature	-25 70
emc to standard ...	EN 60947-5-3
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
acc. shock to standard1	30g
eclass reference feature	27272404
coding level to iso 14119	Low
vibration to standard ...	EN 60947-5-2
max. ambient temp. at hmax	+60 °C
perm. operating height asl	4000 m
housing material upper part	PBT
ambient temperature standard	EN 60068-2-14
max. ambient temp. at 2000 m	+70 °C
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-30
weee classifikation (08/2018)	5 devices (feed size < 50cm)
