Pilz

570008

Name: 570008
Brand: Pilz
Availability: PreOrder

Product type: PSEN me1.21S / 1AR

Datasheet

Description

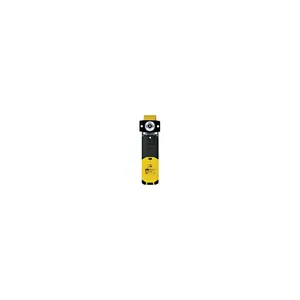

Mechanical safety guard locking device, with radius actuator, interlock principle: Spring force 1500 N, contacts: 1 N/O, 3 N/C, supply voltage 110 - 230 V AC.

Sensor technology
Safety switches
PSENmech - mechanical safety switch
PSENmech with guard locking

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570008.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.337 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	42.5x184x51 mm
EAN code
Product group	7044
cas no.	7439-92-1
approval	CE CCC BG cCSAus EAC (Eurasian)
unit type	Unit
etim version	ETIM-7.0
gross weight	515 g
holding force	1500 N
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
supply voltage (v)	110 V
ambient temperature	-25 - 70 °C
connection terminal	Spring-loaded terminal
etim reference group	EG000026
power consumption ac	8 VA
supply voltage 2 (v)	230 V
%-part of the pollutant	> 0,1
eclass reference feature	27272603
reach included substances	Lead
type of supply voltage u1	AC
type of supply voltage u2	AC
voltage ac15 safety cont.	230 V
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. current ac15 safety cont.	2.5 A
utilisation cat. ac15/dc13sta.	EN 60947-5-1
