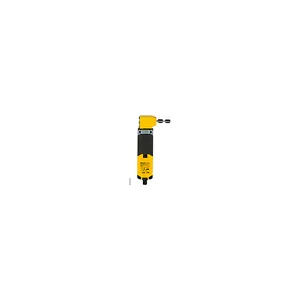

Pilz

570015

Name: 570015
Brand: Pilz
Availability: PreOrder

Product type: PSEN me1.03M/AS n

Datasheet

Description

Mechanical safety guard locking device, with standard actuator, interlock principle magnetic force, contacts: 2 N/O, 2 N/C, supply voltage 24 V AC/DC, M12/5-pin connection.

Sensor technology
Safety switches
PSENmech - mechanical safety switch
PSENmech with guard locking

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570015.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.348 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	42.5x204.5x51 mm
EAN code
Product group	7044
cas no.	7439-92-1 98-54-4 84852-15-3
approval	CE BG cCSAus EAC (Eurasian)
unit type	Unit
etim version	ETIM-7.0
gross weight	440 g
holding force	1500 N
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	M12, 5-pin
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
supply voltage (v)	24 V
etim reference group	EG000026
%-part of the pollutant	> 0,1
eclass reference feature	27272603
reach included substances	Lead Butylphenol Phenol
type of supply voltage u1	AC/DC
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
utilisation cat. ac15/dc13sta.	EN 60947-5-1
