Pilz

570232

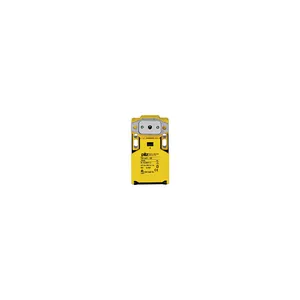

Product type: PSEN me3.2 / 2AR

Description

Mechanical safety switch, with radius actuator, contacts: 1 N/O, 2 N/C.

Sensor technology
Safety switches
PSENmech - mechanical safety switch
PSENmech
PSEN me3.2 / 2AR

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570232.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.173 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	52x90x33 mm
EAN code
Product group	7044
cas no.	7439-92-1 96-45-7
approval	CE cCSAus TÜV EAC (Eurasian)
unit type	Unit
etim version	ETIM-7.0
gross weight	238 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	fixed
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
ambient temperature	-30 - 80 °C
connection terminal	Screw terminal
etim reference group	EG000026
%-part of the pollutant	> 0,1
eclass reference feature	27272603
voltage ac1 safety cont.	240 V
reach included substances	Lead ETU
voltage ac15 safety cont.	240 V
max. current ac1 safety cont.	5 A
rohs except.s acc. to direct.	6a 6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. current ac15 safety cont.	1.5 A
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
