Pilz

570302

Name: 570302
Brand: Pilz
Availability: PreOrder

Product type: PSEN rs2.0-300

Datasheet

Description

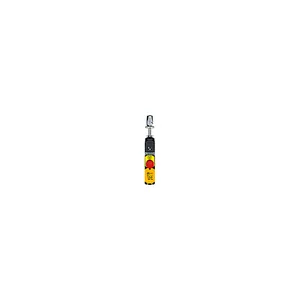

Rope pull switch incl. E-STOP pushbutton, plastic housing, 2xNC+2xNO contacts, 300 N max. spring force.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570302.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.68 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	294x76.8x42.5 mm
EAN code
Product group	7080
cas no.	7439-92-1
approval	CE BG cCSAus
etim version	ETIM-7.0
gross weight	775 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
material actuator	Zn die cast
ambient temperature	-25 - 70 °C
connection terminal	Cage clamp terminal
etim reference group	EG000017
%-part of the pollutant	> 0,1
eclass reference feature	27270607
reach included substances	Lead
voltage ac15 safety cont.	240 V
housing material upper part	PA
rohs except.s acc. to direct.	6a 6b
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PA
max. current ac15 safety cont.	3 A
utilisation cat. ac15/dc13sta.	EN 60947-5-1
