Pilz

570435

Name: 570435
Brand: Pilz
Availability: PreOrder

Product type: PSEN ml sa 2.2 switch

Datasheet

Description

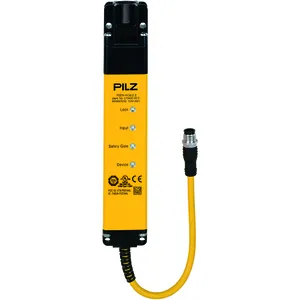

Safety gate system with mechanical guard locking, series-connectableversion, with automatic reset, IP67, 12-pin M12 connector with pigtail 230mm, 4 LEDs on 3 sides, SIL3/PL e/Cat4, package content = 1 uniquely coded sensor without actuator

Sensor technology
Safety gate systems
PSENmlock - safety gate system
PSENmlock

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570435.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.95 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	40x217.2x40 mm
EAN code
Product group	7123
approval	CE UKCA cULus Listed FCC IC TÜV
unit type	Sensor
reset type	automatischer Reset
cable lines	LiYY 12 x 0,25 mm2
etim version	ETIM-7.0
gross weight	1300
eclass version	ECLASS-9.1
connection type	M12, 12pol. male
humidity rating	93 % r. F. bei 40 °C
type 1 actuator	PSEN ml 2.1
number of inputs	4
product material	Zn Aluminium Stahl verzinkt Edelstahl Kunststoff
sensor principle	Transponder
ul enclosure type	Type 1
supply voltage (v)	24
transponder coding	unicat
ambient temperature	0
dc voltage at input	24 V DC
emc to standard ...	EN 55011: Class A EN 60947-5-3 EN 61326-3-1
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
overvoltage category	III
power consumption dc	1
number of ossd outputs	2
number of sig. outputs	1
acc. shock to standard1	30g
eclass reference feature	27272603
escape release available	nein
protection type, housing	IP67
coding level to iso 14119	hoch
potential isolation s/c o	nein
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
ambient temperature standard	EN 60068-2-14
bend radius (when laying) k1	5 x Ø
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
pulse length lock/unlock req.	350 - 400 ms
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
s/c output short circuit proof	ja
suitable for series connection	ja
utilisation cat. to en 60947-1	DC-13
