Pilz

570510

Name: 570510
Brand: Pilz
Availability: PreOrder

Product type: PSEN sl-0.5p 1.1 1switch

Datasheet

Description

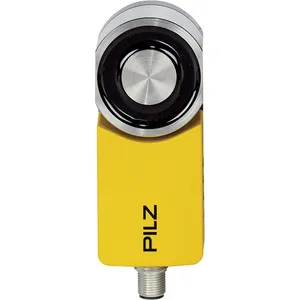

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: coded, 8-pin M12 connector, 4 LEDs, IP67, package contents = 1 sensor without actuator

Sensor technology
Safety gate systems
PSENslock - safety gate system
PSENslock

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570510.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.57 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	45x122x44 mm
EAN code
Product group	7061
approval	CE cULus Listed FCC IC EAC (Eurasian) TÜV
unit type	Sensor
cable lines	LiYY 8 x 0.25 mm2
etim version	ETIM-7.0
gross weight	630
eclass version	ECLASS-9.1
connection type	M12, 8-pin male
humidity rating	93 % r. h. at 40 °C
type 1 actuator	PSEN sl-0.5 1.1
type 2 actuator	PSEN sl-0.5fm 1.1
number of inputs	3
sensor principle	Transponder
supply voltage (v)	24 24
transponder coding	coded
ambient temperature	-25 55
dc voltage at input	24 V DC
emc to standard ...	EN 55011: Class A EN 60947-5-3 EN 62061
max. angular offset	2.5 deg
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
max. vertical offset	5 mm
overvoltage category	III
power consumption dc	4.8
material of base plate	Anticorodal, hard anodised
number of ossd outputs	2
number of sig. outputs	1
acc. shock to standard1	30g
holding force magnet on	500
eclass reference feature	27272603
coding level to iso 14119	Low
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
s/c output short circuit proof	Yes
suitable for series connection	yes
utilisation cat. to en 60947-1	DC-12
