Pilz

570650

Name: 570650
Brand: Pilz
Availability: PreOrder

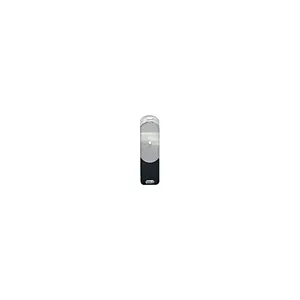

Product type: PSEN sl-1.0 VA 1actuator

Datasheet

Description

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 1000N (process protection). Coding: coded, special model: Stainless steel base plates (1.4301), IP67, package contents = 1 actuator

Sensor technology
Safety gate systems
PSENslock - safety gate system
PSENslock

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570650.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.08 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	52x188x22 mm
EAN code
Product group	7061
approval	CE cULus Listed FCC IC TÜV EAC (Eurasian)
unit type	Actuator
etim version	ETIM-7.0
gross weight	1160
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
sensor principle	Transponder
material actuator	Stainless steel 1.4301
transponder coding	coded
ambient temperature	-25 55
emc to standard ...	EN 55011: Class A EN 60947-5-3 EN 62061
etim reference group	EG000026
acc. shock to standard1	30g
eclass reference feature	27272606
material of anchor plate	Nickel-plated steel
coding level to iso 14119	Low
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
