Pilz

570793

Name: 570793
Brand: Pilz
Availability: PreOrder

Product type: PSEN cable 200m-8x0.25mm²

Datasheet

Description

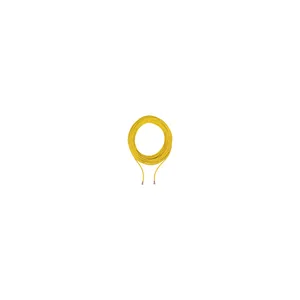

Cable reel, TPU/TPE-U, yellow RAL1003, 8x0.25, suitable for drag chains,colour of the single wires: White, brown, green, yellow, grey, pink, blue, red, cable length: 200m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Cable by the metre

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570793.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	10.8 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	11280 g
halogen-free	yes
length cable	200 m
shielding k1	no
stranding k1	8 cores round filler
cable type k1	Li9Y11Y
eclass version	ECLASS-9.1
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	no
flame resistance	cULus 20549
reach compliance	Contains no SVHC substances
cable material k1	Cu
supply voltage (v)	300 V
ambient temperature	-25 - 80 °C
number of conductors	8
approvals for cable k1	UL AWM-Style 20549
conductor cross section	0.25 mm²
eclass reference feature	27062010
colour cable insulation 1	Signal yellow RAL1003
cable cross section awg k1	24
bend radius (when laying) k1	6 x Ø
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	78 Ohm/km
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU / TPE-U
max. outside diameter cable k1	6.2 mm
specific conductor capacity k1	60pF/m
specific contact resistance k1	>= 1E+16 Ohm*cm
trailing capability of cable 1	yes
